Pinout - PIC18F4550

Pinout - PIC18F4550

Shunt Voltage References - LT1009

Fixed Shunt Regulator with Null Offset Pin - LT1009

Missing pulse detector

Special-Purpose Operational Amplifiers, Timers: NA555, NE555, SA555 e SE555.

Applications
• Clock generators
• Missing pulse detection
• Monostable flip-flops

LMV393 window comparator

Applications
• Portable consumer products
• Consumer goods
• Test and measurement

Ethernet Port - pinout

Ethernet Pinouts

Ethernet 10/100Base-T Pinouts	Gigabit Ethernet Pinouts
Pins Assignment	Pins Assignment
1 Transmit +	1 Transmit/Receive 0 +
2 Transmit –	2 Transmit/Receive 0 –
3 Receive +	3 Transmit/Receive 1 +
4 NU	4 Transmit/Receive 2 +
5 NU	5 Transmit/Receive 2 –
6 Receive –	6 Transmit/Receive 1 –
7 NU	7 Transmit/Receive 3 +
8 NU	8 Transmit/Receive 3 –

NU = Not used

Stereo Jack Connector - pinout

Conductor	Function
Tip	+5 V
Ring	Signal; interrupt (active low)
Sleeve	Chassis ground and cable shield

Serial Port - pinout

Shows pinout assignments for the 9-pin male DB-9 connector

Pin	Assignment	Description
1	DCD	Data carrier detect
2	RXD	Receive data
3	TXD	Transmit data
4	DTR	Data terminal ready
5	GND	Signal ground
6	DSR	Data set ready
7	RTS	Request to send
8	CTS	Clear to send
9	RI	Ring indicator

RJ-45 RS232 CONNECTOR

PIC18F13K22

PIC18F13K22 - 20-Pin Flash Microcontrollers

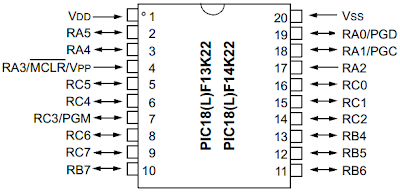

Pinout - 20-pin PDIP, SSOP, SOIC (300 MIL)

Pinout - PIC18F13K22
